Upcoming - Daimler Validation of FEA Compliant Modeler

by Benjamin Reese, on Dec 1, 2020 10:00:00 AM

A MODELING APPROACH FOR ELASTIC TOLERANCE
SIMULATION OF THE BODY IN WHITE HANG-ON PARTS

See the extended presentation LIVE from Hanchen Zheng as shown at the ICED Conference event

DCS is proud to present guest speaker Hanchen Zheng, Daimler. Zheng will be discussing the process, inputs, and results from his validation study on 3DCS FEA Compliant Modeler on BIW parts.

Webinar Event



FEM Information and 3DCS Software

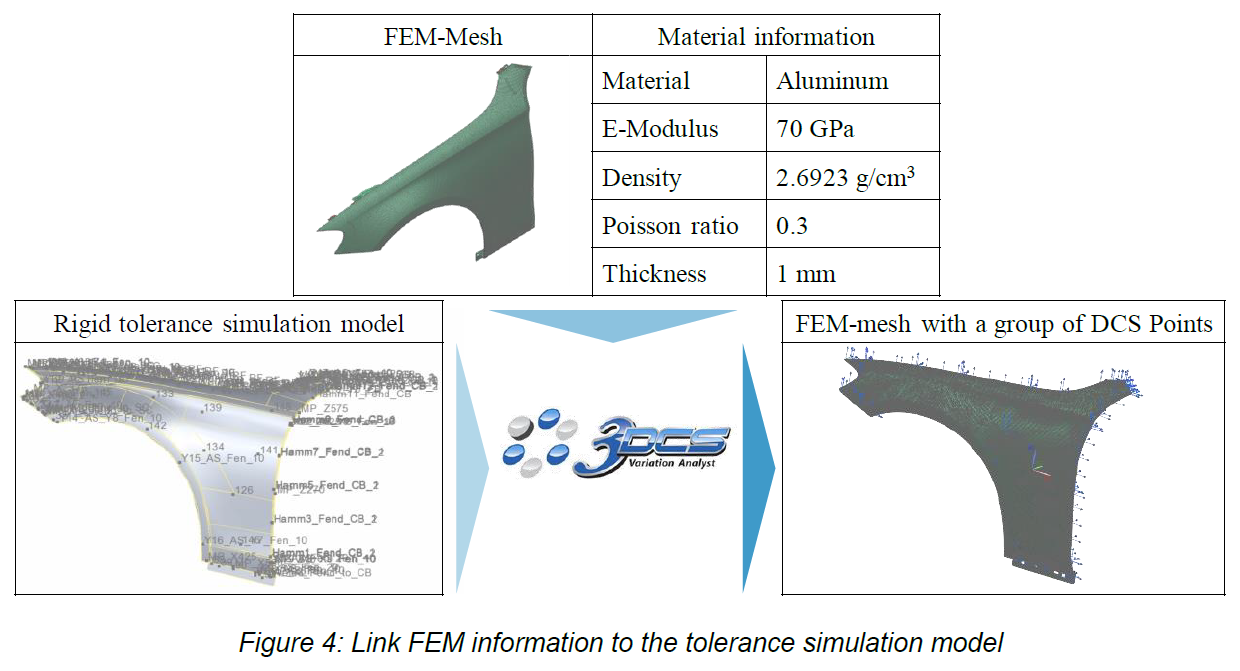

This paper proposes an approach to implement tolerance simulation for a compliant assembly, which includes manufacturing processes such as clinching, bolting and hemming by applying tolerance simulation tool.

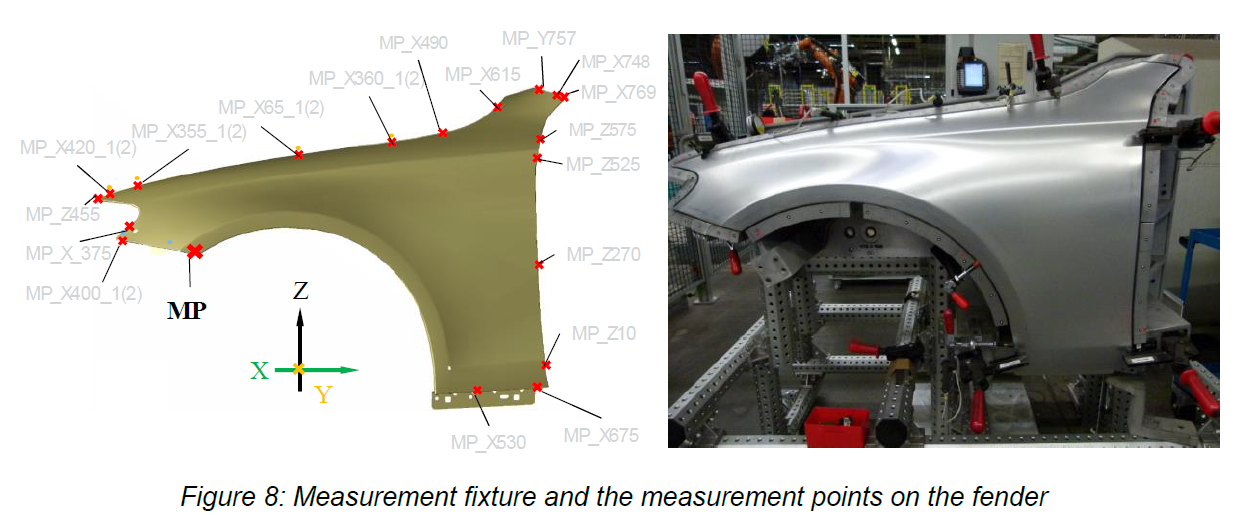

Measurement Fixture for BIW Fender

The fender-BIW system is simulated as a compliant–rigid system and the simulation model is applied to two production scenarios. The simulation results are compared with real measurement data, which demonstrates the efficacy of using simulation in early production as opposed to prototyping or other methods of design by showing the strong correlation between simulation results and as-built products.

Daimler FEA Case Study - Dec 10



Topics:CATIA3DCSTolerance AnalysisFEACATIA V6WebinarSiemens NX3DCS CreoPTC CreoSOLIDWORKS
