Tips & Tactics: Inserting New Components in 3DCS CATIA V5

by Benjamin Reese, on Dec 5, 2013 10:15:00 AM

Quickly Bring Old and New Products Into Your CATIA Model

tips and tactics catia v5 v6

Tips and Tactics offer useful information about taking full advantage of all the features that CATIA and 3DCS possess.

Save time, and frustration with these quality of life hints that make modeling faster and easier.



Product Structure Tools CATIA 3DCS resized 600

Insert Component and Insert Component with Positioning are tools in CATIA V5, located under the Assembly Design Workbench. Both allow you to bring in old or new files into an existing product.

Product Structure Tools CATIA 3DCS 2



Inserting a Component

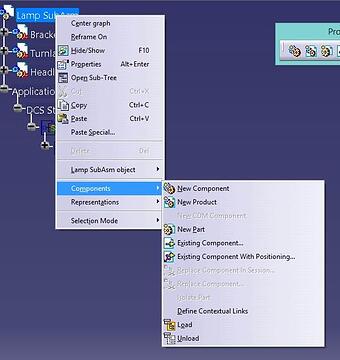

3DCS new component catia v5

Is located in the Assembly Design Workbench under Insert dropdown or Product Structure Tools toolbar. It’s also available in the Right-Click menu; Right-Click on an assembly in Assembly Design to show the menu.

This will allow the user to insert old or new parts into an existing product.

Product Structure Tools CATIA 3DCS 3



Insert Component with Positioning

Is located in the Assembly Design Workbench under the Insert dropdown or Product Structure Tools toolbar. It’s also available in the Right-Click menu; Right-Click on an assembly in Assembly Design to show the menu.

This will allow the user to insert old or new parts into an existing product.  It will also allow the user to position a part in the assembly using the Snap tool.

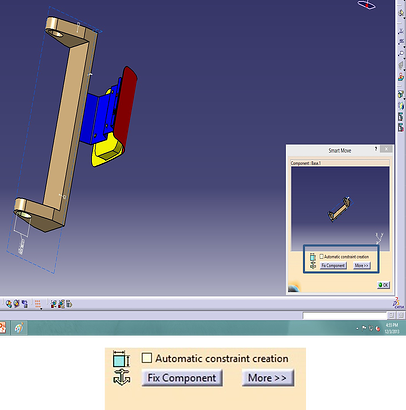

automatic constraint creation 3dcs catia v5

1.Start the command Insert Component with Positioning

2.Select the part to add to the assembly

3.In the Smart Move window, select a Edge, a Face, an Axis or a vertex

4.Select a similar feature in the main graphic window

5.Select the green arrow to switch orientation

OR

6.Select in space to accept the position

7.Select another element to position in a different orientation

(The Smart move can automatically create constraints, or specific constraints, in the working assembly.)



Questions? Post them here or email us at sales@3dcs.com

To learn more, view the other Tips & Tactics by selecting the T&T topic to the right, or visit the CATIA V5 page at http://www.3dcs.com/catia.html

written by Jason Brehmer, DCS Variation Analyst
